SCHEDULE F
(Section 14)
Off-Target Penalty Factors
Drilling and Production Regulation Table of Contents

1. Where the minister has not varied the size and shape of a spacing unit under section 102 of the Act, the off-target penalty is determined:

(a) for a well producing from a pre-Mississippian pool or a horizontal well, by reference to Diagram A;

(b) in the case of any other well, by reference to Diagram B.

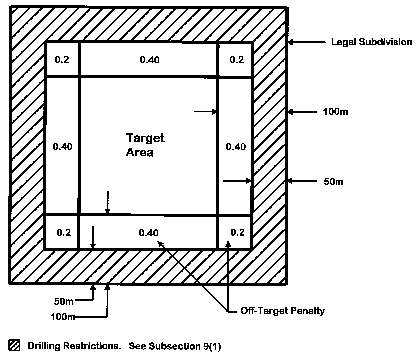

DIAGRAM A

Diagram A

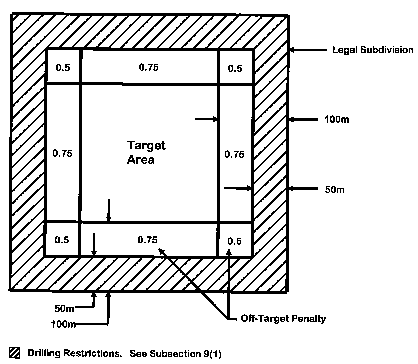

DIAGRAM B

Diagram B

Class 2
Class 3

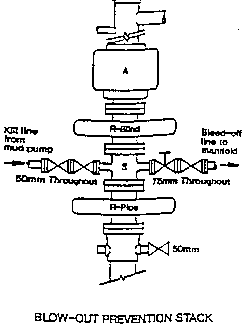

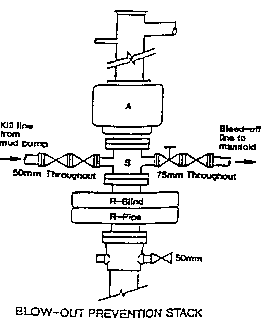

BOP Class 2 BOP Class 3

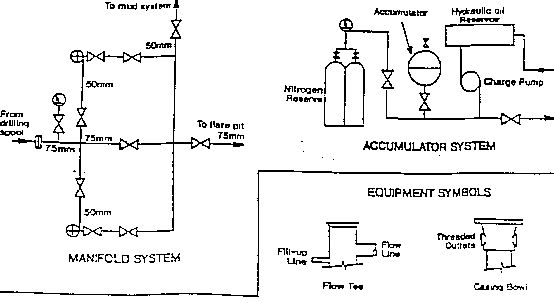

System
BOPA 4

SCHEDULE G
(Subsection 85.2(1))
Consentrations of Hydrogen Sulphide and Sulphur Dioxide

1. The concentration of hydrogen sulphide beyond a well or battery site shall not exceed either of the following levels:

(a)  one hour average - 15 micrograms per cubic metre/11 parts per billion;

(b) 24 hour average - 5 micrograms per cubic metre/4 parts per billion.

2.  The concentration of sulphur dioxide beyond a well or battery site shall not exceed either of the following levels:

(a) one hour average - 900 micrograms per cubic metre/0.34 parts per million;

(b) 24 hour average - 300 micrograms per cubic metre/0.11 parts per million.
