Flin Flon Belt and Kisseynew


Investigation of "kimberlite-like" rocks from the south Wekusko Lake area, north-central Manitoba

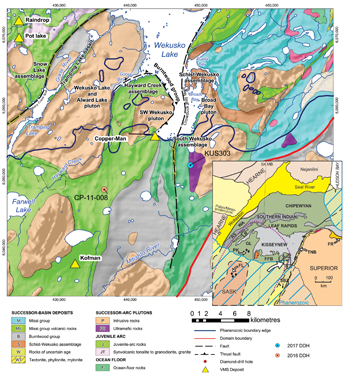

Click to enlargeProject Information

Principal investigators:
Kyle Reid

Partnered with:
Anton Chakhmouradian, University of Manitoba

Parts of NTS 63J12


Project Description

Main objectives:

Determine the nature and timing of dolomite-phlogopite–bearing intrusions in the area directly south of Wekusko Lake.


During the 2016 and 2017 field seasons, two occurrences of dolomite-phlogopite–bearing intrusive rocks were identified by the MGS during re-logging of historical exploration drillcore. Detailed petrography coupled with compositional data obtained from electron microprobe and laser ablation ICPMS analyses of select minerals will be used to establish the petrogenesis of these rocks, which have characteristics common to kimberlite or carbonatite.



Determining whether these intrusions are carbonatite or kimberlite is key to understanding their significance with respect to mineral potential. For example, some carbonatites host economic concentrations of rare-earth elements, niobium, and zirconium, as well as more common metals such as copper, iron and molybdenum. In contrast, kimberlites are the most common host of economic diamond deposits.


Plans for fiscal year 2017-2018:

An honours thesis student supervised by Dr. Anton Chakhmouradian at the University of Manitoba is completing the detailed petrography and geochemical work on these intrusions.


Completed outputs:


Chakhmouradian, A.R. and Reid, K.D. 2017: New occurrences of kimberlite-like intrusive rocks in drillcore from south of Wekusko Lake, eastern Flin Flon belt, north-central Manitoba (NTS 63J12); in Report of Activities 2017, Manitoba Growth, Enterprise and Trade, Manitoba Geological Survey, p. 78–90.
